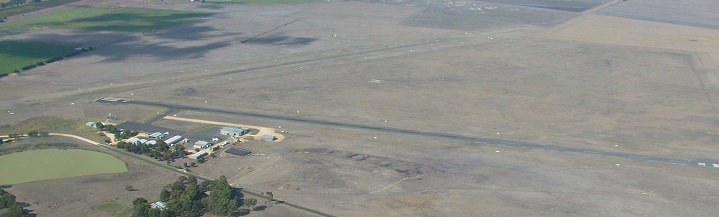

Description of Site
The Naracoorte Aerodrome is located at an elevation of 169 feet, 2.0 nautical miles on a magnetic bearing of 193 degrees from the Town of Naracoorte.
Aerodrome Reference Point coordinates are S 36 degrees 58.9' - E 140 degrees 43.0'.
The Aerodrome is situated on Sections 1068, 1069, 1094 and part Section 639, Hundred of Naracoorte and is contained within an area of 180 hectares.
Aerodrome Information
The Aerodrome Operator is the Naracoorte Lucindale Council.
For further information on the Naracoorte Aerodrome contact Council.
Aerodrome charges - are applicable to charter services and locally-based aircraft. Aerodrome charges are listed in Council's Fees and Charges Guide, which is available by clicking here.
Runways
02/20 Bearing 018 magnetic Length 1,337 metres Runway width 23 metres
Pavement - weighted 5700kg, Gravel
08/26 Bearing 075 magnetic Length 1,048 metres Runway width 18 metres
Pavement - weighted 5700kg, Sealed
Runway Supplementary Information - see attached Schedule
Note: CASA Regulations, Rules and Practices for Aerodromes and Civil Aviation Advisory Publications are available on the CASA Website.
Aerodrome and Approach Lighting
RWY 08/26 LIRL AFRU + PAL 126.7
RWY 08/26 edge light spacing: 60m
OTHER LIGHTING TWY LGT: Blue edge
Wind Indicators
Primary Wind Indicator (white) located at south-eastern corner of apron area.
Secondary Wind Indicator (yellow) located at Western side of runway 02 approach threshold.
Runway Supplementary Information
RWY | TORA | TODA | ASDA | LDA |
02 | 1337 | 1397 | 1337 | 1337 |
20 | 1337 | 1397 | 1337 | 1337 |
08 | 1048 | 1121 | 1048 | 1048 |
26 | 1048 | 1108 | 1048 | 1048 |
4% OBST clear APCH SFC LDC RWY 26 terminates at THR not RWS end.
Slope 0.1% down to W. RWY WID 18 RWS WID 90
Supplementary Take-off Distances
RWY | 02 | 870 | (2854) | (2.2) | 985 | (3232) | (2.5) | 1192 | (3911) | (3.3) |
RWY | 20 | 1307 | (4288) | (1.6) | ||||||
RWY | 08 | 959 | (3146) | (3.3) | ||||||
RWY | 26 | 1095 | (3592) | (1.6) |
*For further information please refer to the latest En Route Supplement Australia (ERSA).
Reporting Officer
The reporting officer can be contacted via Council.
Naracoorte Aerodrome Master Plan
The Naracoorte Aerodrome Masterplan forms the basis for management of the Aerodrome for the next 20 years. The purpose of the Master Plan is to provide direction for Aerodrome operations and provide a framework for considering possible future development of the Aerodrome.
Click the link below to view a copy of the plan:
Naracoorte Aerodrome
139 Doolans Road, Naracoorte
